Quantum Hot Water Heat Pumps

SA Hot water are your local Adelaide Sanden specialist for sales, and great prices on Quantum Heat Pump hot water systems. Call today on 8444 7320 for a great deal.

The origins of the company go back to the mid 1970’s when extensive research work was undertaken by the University of Melbourne in the development of heat pump technology
for the production of hot water. Today this patented technology is used in thousands of Australian homes as well as commercially in Australia, New Zealand, Asia and Europe.

With over 30 years of on-going product development, Quantum are the experts in Solar Heat Pump water heating.
Our products have been tried and tested to perform reliably and efficiently throughout Australia, in even the harshest water and weather conditions.

Why purchase a Quantum Hot Water Heat Pump System?

  • Suitable for use in harsh water quality conditions
    The water does not make contact with any operational components, only the inner lining of the tank
  • Low noise rating
    Ultra quiet operation as low as 48dB – less than an average split system air conditioner.
  • Solar without the panels
    Hot water from solar energy, without the need for direct sunlight or roof panels. Heat pumps generate hot water day and night.
  • Easy installation
    A compact design resulting in reduced labour and installation costs.
  • No booster element
    Quantum heat pumps operate in ambient temperatures as low as -10°C. No booster element, means less energy consumption.
  • Government rebates
    Eligible installations attract a substantial energy efficiency cash rebate.
  • Patented Tank Wrap™ design
    Quantum’s patented wrap design offers one of the fastest hot water recovery rates in the heat pump market.
  • Save on power bills
    Can cut up to 70% of running costscompared to some electric storage units.
  • Warranty
    5 years tank, 2 years electric and refrigeration inclusive of parts and labour

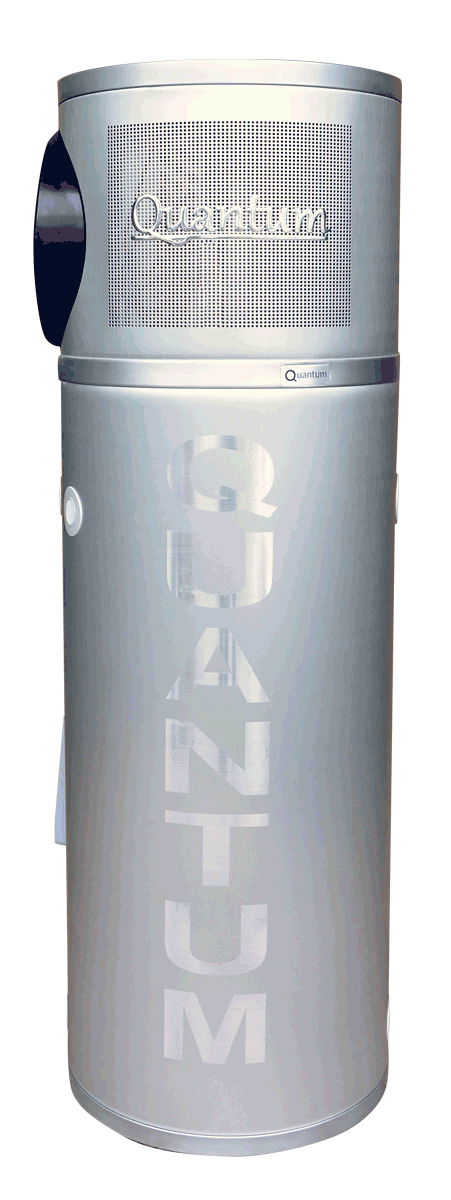

Quantum-ad

Quantum 150L

Quantum Heat Pumps
Storage Size150 L
Rated Delivery130 L
Heating Output3.61 kW
Power Input0.84 kW
COP of Heating*4.3
CompressorRotary
RefrigerantR290
Electrical Supply220-240V/50Hz/1Ph
Circuit10 Amps
Water Connections3/4” BSP
PTR Valve Setting850 kPa
ECV Setting700 kPa
PLV Without ECV Fitted500 kPa
PLV With ECV Fitted300-500 kPa
Operating Sound Level**50 dBA
Dimensions (Height x Diameter)1620 mm x 540 mm
Nett (Empty) Weight100 kg
Ambient Operating Temperature-10 °C to +35 °C
Water Temperature Setting60 °C
Hot Water Production Rate*72 L/hr

Quantum 200L

Quantum Heat Pumps
Storage Size200 L
Rated Delivery175 L
Heating Output3.61 kW
Power Input0.84 kW
COP of Heating*4.3
CompressorRotary
RefrigerantR290
Electrical Supply220-240V/50Hz/1Ph
Circuit10 Amps
Water Connections3/4” BSP
PTR Valve Setting850 kPa
ECV Setting700 kPa
PLV Without ECV Fitted500 kPa
PLV With ECV Fitted300-500 kPa
Operating Sound Level**50 dBA
Dimensions (Height x Diameter)1950 mm x 540 mm
Nett (Empty) Weight115 kg
Ambient Operating Temperature-10 °C to +35 °C
Water Temperature Setting60 °C
Hot Water Production Rate*72 L/hr

Quantum 270L

Quantum Heat Pumps
Storage Size270 L
Rated Delivery250 L
Heating Output3.81 kW
Power Input0.84 kW
COP of Heating*4.53
CompressorRotary
RefrigerantR290
Electrical Supply220-240V/50Hz/1Ph
Circuit10 Amps
Water Connections3/4” BSP
PTR Valve Setting850 kPa
ECV Setting700 kPa
PLV Without ECV Fitted500 kPa
PLV With ECV Fitted300-500 kPa
Operating Sound Level**48 dBA
Dimensions (Height x Diameter)1900 mm x 650 mm
Nett (Empty) Weight135 kg
Ambient Operating Temperature-10 °C to +35 °C
Water Temperature Setting60 °C
Hot Water Production Rate*75 L/hr

Quantum 340L

Quantum Heat Pumps
Storage Size340 L
Rated Delivery315 L
Heating Output3.81 kW
Power Input0.84 kW
COP of Heating*4.53
CompressorRotary
RefrigerantR290
Electrical Supply220-240V/50Hz/1Ph
Circuit10 Amps
Water Connections3/4” BSP
PTR Valve Setting850 kPa
ECV Setting700 kPa
PLV Without ECV Fitted500 kPa
PLV With ECV Fitted300-500 kPa
Operating Sound Level**48 dBA
Dimensions (Height x Diameter)2200 mm x 650 mm
Nett (Empty) Weight170 kg
Ambient Operating Temperature-10 °C to +35 °C
Water Temperature Setting60 °C
Hot Water Production Rate*75 L/hr
